Page ref: 146

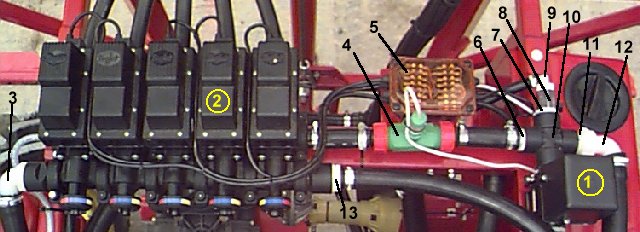

Electric control valves - Spraying systems
|
1 |
Pressure regulator |
Spraying systems |
|
2 |
Boom section control valve |
Balanced return (multi-disc) |
|
3 |
Elbow |
|
|
4 |
Flow sensor (RDS) |
|
|
5 |
Junction box |
|
|
6 |
Hosetail |
|
|
7 |
Nipple |
|
|
8 |
Agitator valve |
|
|
9 |
Hosetail 90 deg |
|
|
10 |
Cross |
|
|
11 |
Nipple |
|
|
12 |
Cap/liner/seal |
|
