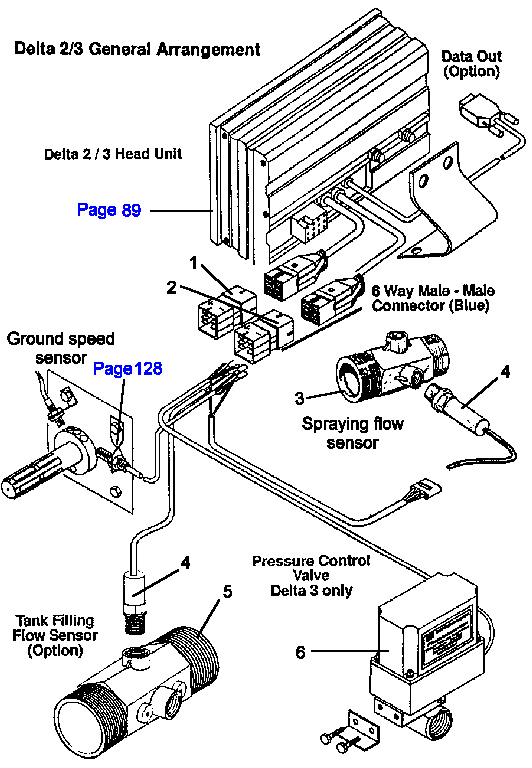

RDS Delta 3 - general layout / components

1

Connector shell

Grey

2

Connector shell

Blue

3

Flow turbine

 1"

4

Flow sensor



5

Flow turbine (filling)

 2" (Optional)

6

Pressure regulator

a) Spraying systems
b) Braglia (Orange top)
c) RDS (pictured)
