Operating -
Main control valves
Water filling
To fill the
sprayer using the self fill hose proceed as follows:
Connect the
self-fill hose to the quick release coupler on the bottom of the
suction control valve. Always use the hose supplied with the sprayer
or one fitted with a non-return valve. Do not fill the sprayer
from open waters.
Ensure the master
sprayer control switch is in the off position, engage the pto and
turn the pressure and suction valves to the fill positions as
shown below.
When the desired
quantity of liquid has been drawn into the spray tank turn the valves
back to the spray/circulate positions before stopping the PTO
to avoid any liquid running back down the hose. The hose should then
be withdrawn from the water source and then disconnected.

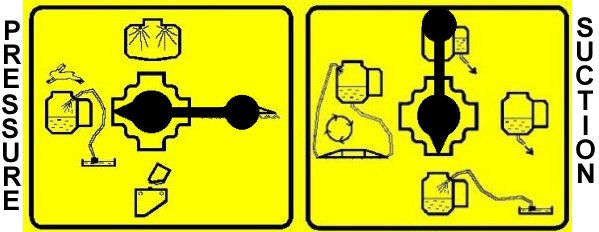

Main valve
positions for water self-filling
Spray/Circulate
After filling the
valves should be moved to the positions as shown below. This is the
normal position for circulating and spraying.

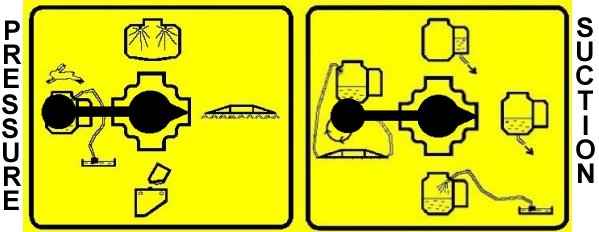

Valve positions
for spraying/circulating
