Operating -
Main control valves
Main control valves

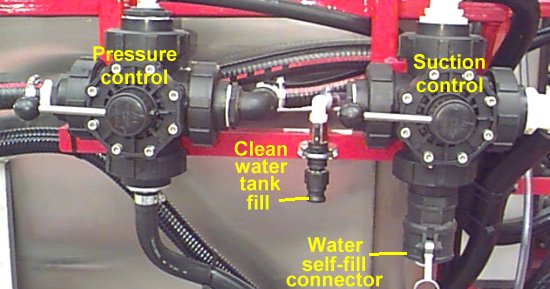

The main sprayer control valves are situated on the nearside of the sprayer above the chemical inductor.
|

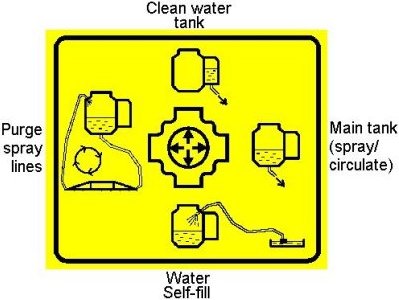

Suction control valve
This valve controls the suction
side of the pump and selects where the liquid is drawn from - i.e.
the main spray tank, the clean water wash tank, water self fill and
through the spray lines (if purge system is fitted). |
|
|

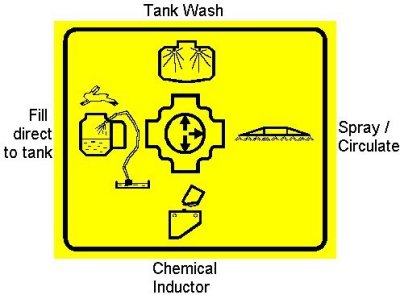

Pressure control valve This valve directs the pressure flow to either the spray controls, the chemical inductor the tank washing nozzles or directly into the spray tank. |
|
