Fuses

The fuse panel can be accessed by lifting the storage shelf lid on the left hand side of the cab. The complete panel can be lifted out of the box. Ensure the battery isolator is turned off before removing the fuse panel.

Should any fuses require replacement please ensure they are replaced with the correct size or serious damage to the wiring system and particularly the electronic components can occur.

The large Ford relay on the electric panel controls the glow plug timing. This is protected by a fuse link wire where the feed connects onto the power distribution bobbin. This link will melt in the event of a direct short.

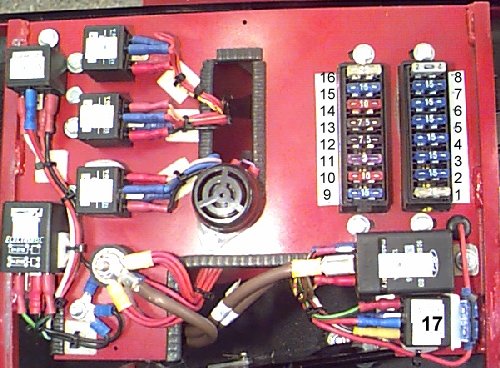

Fuse panel layout




1 Intercooler fan
2 Auxiliary controls / boutmarker
3 Cigarette / power socket / condenser fan
4 Rear work lamps / beacon
5 Front work lamps / interior lamp
6 Headlights /flash / horn
7 Air con compressor / Hazard warning
8 Four wheel steering
9 Ventilation fan / wiper park / radio
10 Wipers / screen wash
11 ICM warning buzzer, diff lock lamp
12 RDS Delta / ICM / 4WS activation
13 Indicators / relay feeds
14 Engine fuel solenoid / Brake lights
15 Spray controls (motorised valves only)
16 Ignition switch feed
17 Starter activate

25A
15A
15A
15A
15A
15A
15A
2A
15A
10A
3A
5A
7.5A
10A
15A
25A
15A
