Operating - ICM

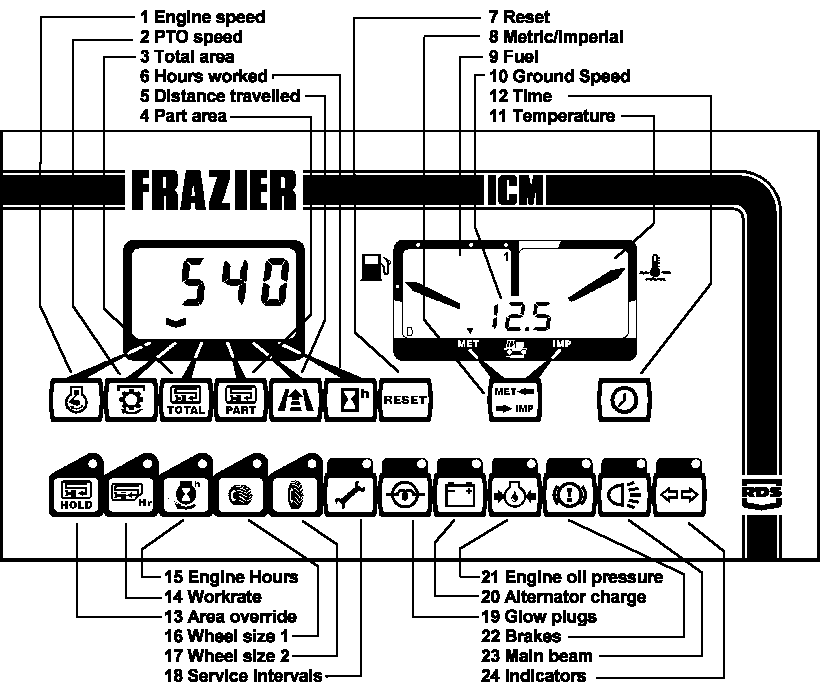

| 14 Workrate 15 Engine hours 16 Wheel calibration 1 17 Wheel calibration 2 18 Service intervals Service reminder 19 Glow plugs 20 Alternator 21 Engine oil pressure Oil pressure alarm 22 Handbrake Brake fluid 23 Main beam 24 Indicators |
Press to display
spot rate of work in LH window Press to display total engine running hours in LH window Press to select preprogrammed calibration for wheel size 1 Press to select preprogrammed calibration for wheel size 2 Press to display hours to and type of next service Audible & visual warning to remind when service is due Glow plug warning light for engine starting Alternator charge warning light Engine oil pressure warning light Visual and audible alarm if pressure low for 10secs with engine running Visual warning light, audible alarm only when moving Warning light for low level, audible alarm if moving Warning light Warning light and audible beep with each flash |
