RDS SAM 20 - Speed sensor calibration chart
|
Tyre size |
Rolling |
2D/3D/4D |
2D |
|
31x15.5x15 STG LP |
360 |
3.1 |
7.4 |
|
12.4x16 Intermediate |
443 |
3.9 |
9.1 |
|
6.00x36 row crop |
577 |
5.1 |
11.9 |
|
7.2x36 row crop |
592 |
5.2 |
12.2 |
|
38x20x16 LP |
436 |
3.8 |
9.0 |

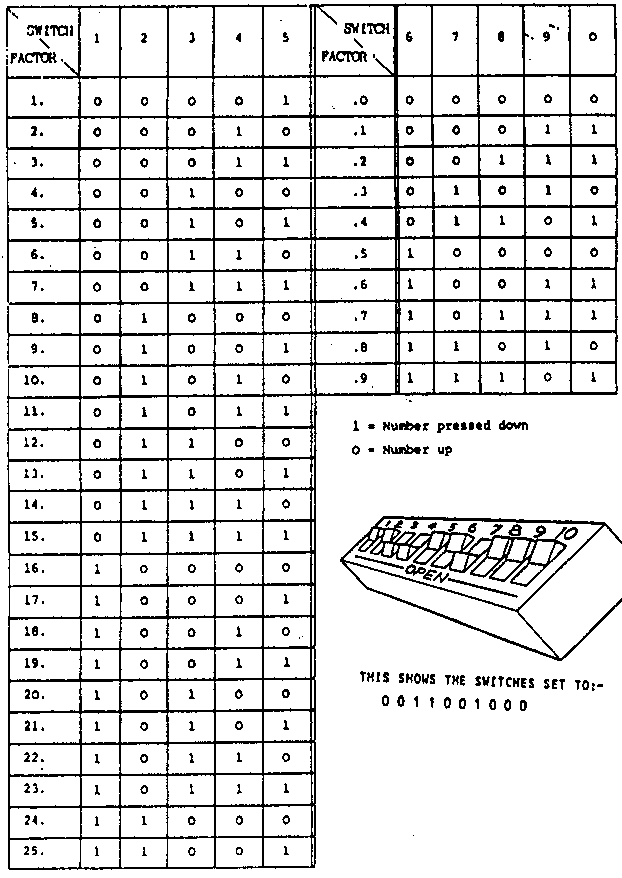

Once a calibration
figure has been established the settings for the dip-switches can be
read off the chart below.
E.G. 1.0 =
0000100000 and 3.1 = 0001100011 Set the switches as per the diagram
at the bottom right
