Technical reference page: 40

Hydraulic PTO valve - On/off lever O ring replacement

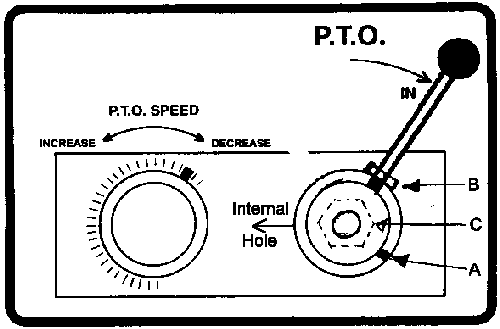

1. Place lever in on position ( as shown)
2. Undo locknut B and unscrew lever
3. Unscrew grubscrew A and remove lever assy from shaft
4. Unscrew exposed hexagon C and withdraw tap assy from body
5. Pull shaft out of centre of hexagon and replace O ring on shaft
6. Re-assemble ensuring that the hole in the shaft points directly towards the flow control when the lever is in the ON position as above
