Air conditioning thermostat position

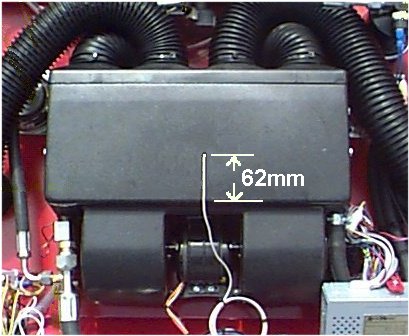

The thermostat should be inserted into the evaporator coil in the position shown below. Incorrect positioning may cause the system to freeze up after a short period of use. EXTREME care must be taken when drilling holes through the plastc case to avoid damaging the evaporator - use either a stop on the drill or a piece of tube over the drill bit.
