Page ref: 111

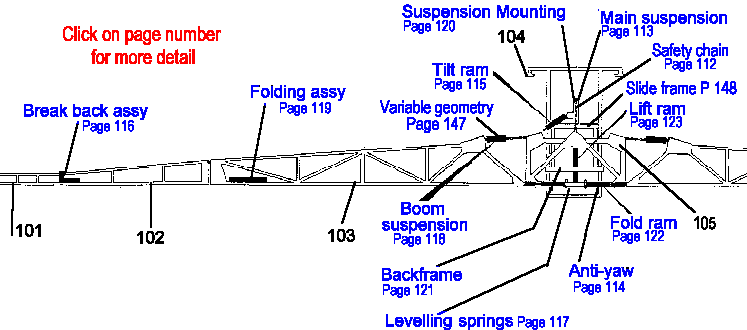

Pommier booms - 24m
1 |
Bolt |
M16x100 |
2 |
Bolt |
M16x110 |
3 |
Bolt |
M20x80 |
4 |
Bolt |
M20x100 |
5 |
Bolt |
M20x110 |
7 |
Washer stainless |
16mm |
8 |
16mm stainless |
|
9 |
washer stainless |
20mm |
11 |
Lock nut |
M16 |
12 |
Lock nut |
M20 |
13 |
Lock nut |
M16 |
15 |
lynch pin |
6mm |
16 |
Back frame pivot pin |
20x125 |
17 |
Bacl frame wear strip |
8x60x400mm |
20 |
Full nut |
M16 |
21 |
Inner section mounting plate |
|
22 |
Pivot wear bush |
20x30x15 |
23 |
Metal boom pivot block |
|
24 |
Wear/spacer tube |
28x60 |
25 |
Bolt |
M20x90 |
27 |
Bolt |
M16x50 |
28 |
Bolt |
M16x55 |
29 |
Bolt |
M16x70 |
30 |
Bolt |
M12x120 |
31 |
Bolt stainless |
M8x80 |
32 |
Flat washer stainless |
16x24 |
33 |
Flat washer |
12x25 |
34 |
Flat washer |
M8 |
35 |
M12 bolt/locknut |
|
36 |
Full nut stainless |
M8 |
37 |
Fold ram |
a) assy 35/20/290 |
38 |
Fold arm |
|
39 |
Dog leg artic |
a) RH |
40 |
Pivot pin stainless |
20mm |
41 |
Rose joint |
16mm |
42 |
Rose joint |
16mm LH thread |
43 |
Half nut |
16mm |
44 |
Turnbuckle |
16mm |
45 |
Roll pin |
6mm |
46 |
Plastic spacer washer |
20mm OD |
47 |
Ram clamp |
GR 6mm |
48 |
Chain |
5mm |
49 |
Stabilisation spring |
|
50 |
Full nut stainless |
M10 |
51 |
Bolt stainless |
M10x35 |
52 |
Bolt |
M14x40 |
53 |
|
|
54 |
Washer - stainless |
M14 |
55 |
Fixing pin |
20mm |
56 |
Folding chain |
|
57 |
Suspension unit |
a) assy LH/RH |
58 |
Outer adjustable boom stop |
10x40 |
59 |
Bolt |
M16x75 |
60 |
Bolt |
M8x25 |
61 |
Flat washer |
16mm |
62 |
Washer stainless |
8mm |
63 |
Washer |
8mm |
64 |
Spacer |
16/24 |
65 |
Rose joint |
16mm LH thread |
66 |
Lock nut |
M16 |
67 |
Pivot plate |
|
68 |
Pivot location plate |
|
69 |
Break back cable |
a) assy |
70 |
Break back spring |
42 OD |
71 |
Cable fixing plate |
|
72 |
Tilt ram |
a) assy 25/40/200 |
73 |
Flat washer |
16x38 |
74 |
Stud |
M16x280 |
75 |
Anti-yaw spring |
|
76 |
Anti-yaw spacer tube |
30x35x80 |
77 |
Wear strip |
15x50x235 |
78 |
Wear strip |
12x50x235 |
79 |
Protection sleeve |
90mm |
80 |
Main fold ram |
a) assy 25/40/300 |
81 |
Central suspension housing |
|
82 |
Main suspension spring |
|
83 |
Safety chain |
|
84 |
Shock absorber |
|
85 |
Bolt |
M12x35 |
101 |
Breakback tip |
|
102 |
Centre boom section |
a) LH |
103 |
Main inner boom section |
a) LH |
104 |
Height mast stop |
|
105 |
Backframe |
|
106 |
Pulley |
|
107 |
Pulley Bolt |
|
108 |
Lift cable |
|
109 |
Lift ram |
a) assy |
110 |
U bolt |
|
111 |
Eye bolt |
|
