Page ref: 102

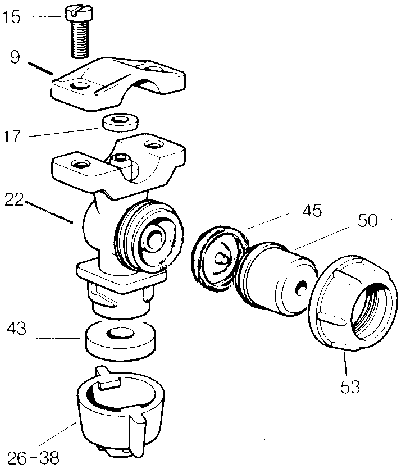

Nozzle body - Lurmark EF1
1 |
Nozzle body assy |
(less cap & seal) |
9 |
Bridge clamp |
a) 1/2" - std |
15 |
Screw |
|
17 |
Seal |
|
22 |
Body |
a) 1/2" - std |
26 |
Cap |
Light brown |
43 |
Seal |
a) EPDM - std |
45 |
Diaphragm |
a) EPDM - std |
50 |
Pressure disc assy |
|
53 |
Retaining nut |
|
