Page ref: 100

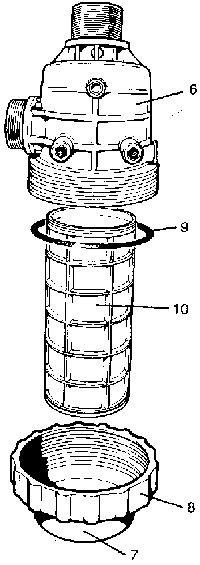

Filters - Suction

1

Suction filter assy

a) 1 1/2"
b) 2"

6

Filter hood

a) 1 1/2"
b) 2"

7

Filter bowl

a) 1 1/2"
b) 2" short -
c) 2" long -

8

Bowl retaining ring

a) 1 1/2"
b) 2"

9

O Ring

a) 1 1/2"
b) 2"

10

Filter element

a30) 1 1/2" 30 mesh
a50) 1 1/2" 50 mesh
b30) 2" 30 mesh short -
b50) 2" 50 mesh short -
c30) 2" 30 mesh long -
c50) 2" 50 mesh long
