Filters - Pressure

Page ref: 99

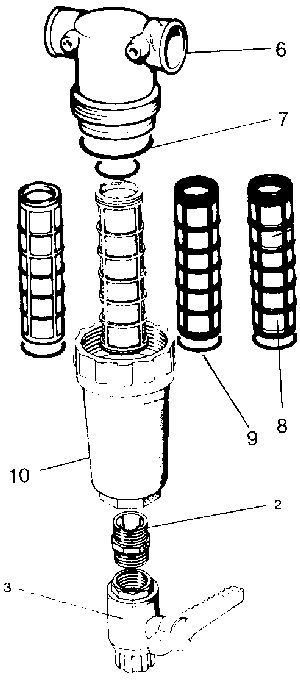

Pressure filter - 1 1/4"

1

Filter assy

a) 1 1/4"
b) 1 1/2"

2

1" nipple

3

1" ball valve

6

Filter hood

7

O Ring

8

Filter element

a) 30 mesh - White
b) 50 mesh - Blue
c) 80 mesh - Red
d) 100 mesh - green

9

O ring

10

Filter bowl

1	Filter assy	a) 1 1/4" b) 1 1/2"
2	1" nipple
3	1" ball valve
6	Filter hood
7	O Ring
8	Filter element	a) 30 mesh - White b) 50 mesh - Blue c) 80 mesh - Red d) 100 mesh - green
9	O ring
10	Filter bowl
