Chemical Inductor




1

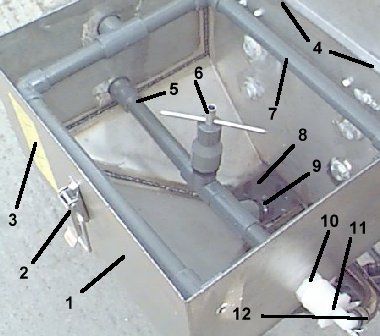

Inductor hopper

a) Assy - complete
b) Hopper only - Stainless
c) Hopper only - GRP (yellow)
d) Hopper only - GRP (Off white)

2

Latch



3

Decal

4

Hinge



5

Can wash tube

a) S/S hopper
b) GRP hopper

6

Can rinse valve



7

Flushing ring assy

a) s/s hopper
b) GRP hopper

8

Anti-vortex outlet



9

Drain cap/seal



10

Nipple



11

Hosetail 90 deg



12

Hose clip



13

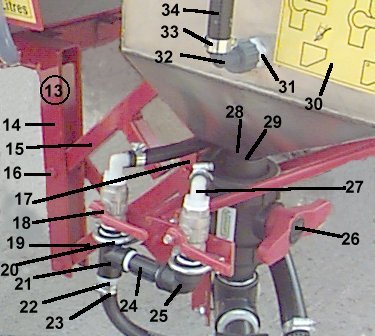

Bracket assy



14

Bracket



15

Top link bracket



16

Bolt/nut



17

Hopper bracket



18

Ball valve



19

Bottom link bracket



20

U clamp



21

Tee



22

Hosetail adaptor



23

Hoseclip



24

Long nipple



25

Elbow



26

Ball valve



27

Elbow



28

Anti-vortex outlet



29

Back-nut



30

Decal

31

Nipple



32

Cap/liner/seal



33

Hose clip



34

Hose



35

Nipple



36

Hosetail



37

Tee



38

Elbow



39

Hose clip



40

Hose



41

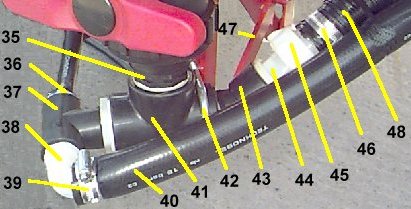

Venturi assy

a) 180lpm>
b) >180lpm

42

U clamp



43

45 deg elbow



44

Nipple



45

Hosetail



46

Hose clip



47

Latch bracket



48

Hose
