Page ref: 59

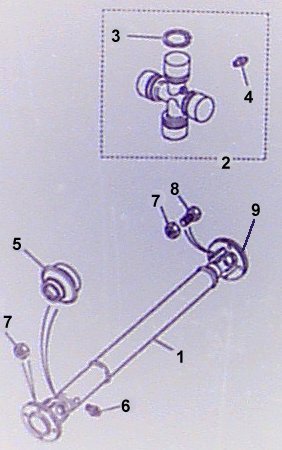

Propshafts - All models

All shafts are available as exchange units

1

Propshaft - front

a) TDI automatic
b) 475, 5D, Phantom TC/TCI, Stealth TCI
c) 3D, 4D, 2D(short engine flange)
d) 2D (long engine flange)

1a

Propshaft - rear

a) TDI automatic - 2 wheel steer
b) TDI automatic - 4WS
c) Phantom TCI, Stealth TCI - 2WS
d) Phantom TCI, Stealth TCI - 4WS
e) 5D, Phantom TC - 2WS
f) 5D, Phantom TC - 4WS
g) 3D, 4D, 475 - 2WS
h) 3D, 4D, 475 - 4WS
i) 2D - Long g/box flange, bolted diff flange
j) 2D - Short g/box flange, bolted diff flange
k) 2D - Long g/box flange, welded diff flange
l) 2D - Short g/box flange, welded diff flange

2

Universal joint

a) Large 82mm across joint
b) Large HD 82mm across joint
c) Small 75mm across joint

3

Circlip



4

Grease nipple



5

Gaiter

a) Long
b) Short

6

Grease nipple



7

Nut



8

Bolt



9

Yoke flange
