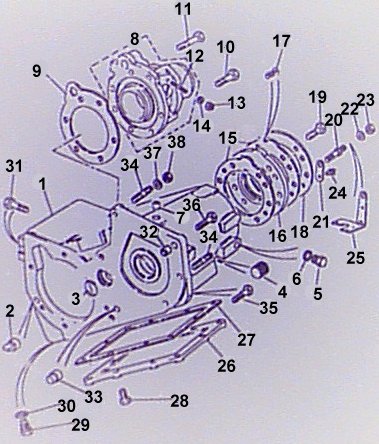

TDI auto transmission - Transfer gearbox housing

1

Housing



2

Dowel



3

O ring



4

Level plug



5

Plug



6

Joint washer



7

Core plug



8

Speedo housing



9

Liquid gasket only



10

Bolt



11

Bolt



12

Stud



13

Nut



14

Washer



15

Liquid gasket only



16

Housing



17

Screw



18

Cover



19

Bolt



20

Stud



21

Bracket



22

Washer



23

Nut



24

Clip



25

Heat shield



26

Bottom cover



27

Liquid gasket only



28

Bolt



29

Drain plug



30

Sealing washer



31

Bolt



32

Dowel hollow



33

Dowl



34

Stud



35

Bolt



36

Bolt



37

Washer



38

Nut
