Page ref: 57

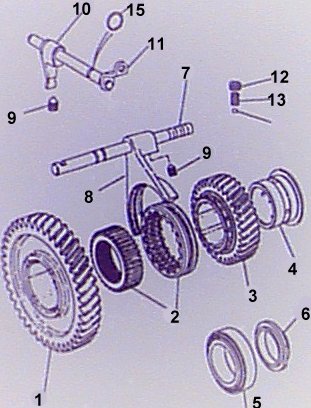

TDI auto - Transfer gearbox - high/low gears
|
1 |
Gear |
|
|
2 |
Sleev/hub assy |
|
|
3 |
Gear |
|
|
4 |
Bearing |
|
|
5 |
Bearing |
|
|
6 |
Nut |
|
|
7 |
Selector shaft |
|
|
8 |
Selector fork |
|
|
9 |
Grub screw |
|
|
10 |
Selector finger |
|
|
11 |
Operating arm |
|
|
12 |
Plug - detent |
|
|
13 |
Spring - detent |
|
|
14 |
Ball - detent |
|
|
15 |
O ring |
|
