Page ref: 54

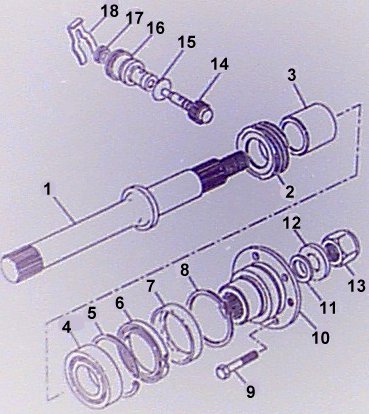

TDI auto - Transfer gearbox - Rear drive flange
|
1 |
Rear output shaft |
|
|
2 |
Worm - speedo |
|
|
3 |
Spacer |
|
|
4 |
Bearing |
|
|
5 |
Circlip |
|
|
6 |
Oil seal |
|
|
7 |
Shield - oil |
|
|
8 |
Circlip |
|
|
9 |
Bolt |
|
|
10 |
Rear output flange |
|
|
11 |
Sealing washer |
|
|
12 |
Washer |
|
|
13 |
Nut |
|
|
14 |
Gear - speedo drive |
|
|
15 |
O ring |
|
|
16 |
Housing |
|
|
17 |
Oil seal |
|
|
18 |
Retaining plate |
|
