Page ref: 66

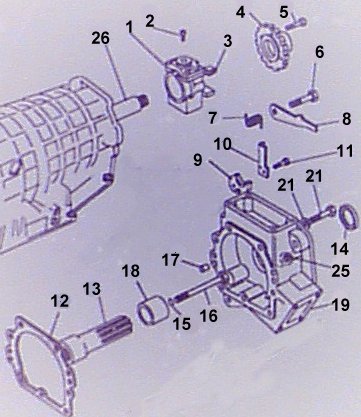

TDI auto Transmission - Extension housing
|
1 |
Governor hub |
|
|
2 |
Screw |
|
|
3 |
Clip |
|
|
4 |
Park gear |
|
|
5 |
Screw |
|
|
6 |
Bolt |
|
|
7 |
Spring |
|
|
8 |
Pawl |
|
|
9 |
Guide plate |
|
|
10 |
Guide plate |
|
|
11 |
Screw |
|
|
12 |
Gasket |
|
|
13 |
Shaft coupling |
|
|
14 |
Sealing ring |
|
|
15 |
O ring |
|
|
16 |
Bolt |
|
|
17 |
Dowel |
|
|
18 |
Ring inner |
|
|
19 |
Housing extension |
|
|
20 |
Screw |
|
|
21 |
Washer |
|
|
25 |
Breather |
|
|
26 |
Output shaft |
|
