Page ref: 15

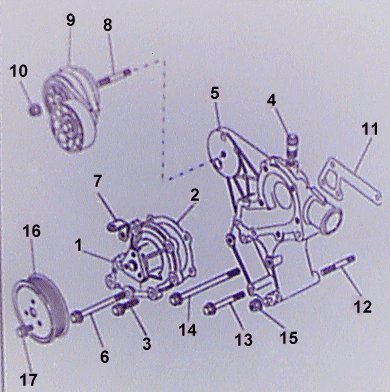

TDI 300 engine - Water pump
|
1 |
Water pump |
|
|
2 |
Water pump gasket |
|
|
3 |
Screw |
|
|
4 |
Pipe stub |
|
|
5 |
Mounting bracket |
|
|
6 |
Bolt |
|
|
7 |
Bracket - bypass hose |
|
|
8 |
Stud |
|
|
9 |
Auxiliary tensioner |
|
|
10 |
Flange nut |
|
|
11 |
Gasket |
|
|
12 |
Stud |
|
|
13 |
Bolt |
|
|
14 |
Bolt |
|
|
15 |
Nut |
|
|
16 |
Pulley |
|
|
17 |
Screw |
