Page ref: 43

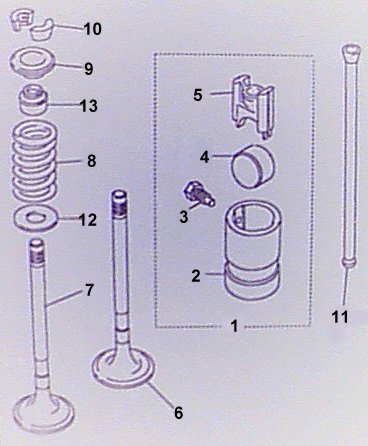

TDI 300 engine - valves / cam followers/ pushrod
|
1 |
Tappet assy |
|
|
2 |
Guide |
|
|
3 |
Set bolt |
|
|
4 |
Tappet guide washer |
|
|
5 |
Slide |
|
|
6 |
Valve - inlet |
|
|
7 |
Valve - exhaust |
|
|
8 |
Spring - valve |
|
|
9 |
Cup valve spring |
|
|
10 |
Cotter - valve spring |
|
|
11 |
Push rod |
|
|
12 |
Seat - valve spring |
|
|
13 |
Seal - valve stem |
|
|
14 |
Cap - valve stem protection |
|
