Page ref: 30

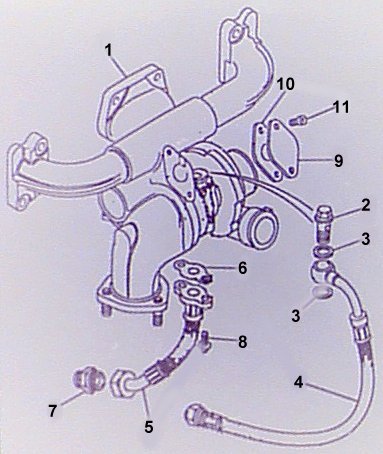

TDI 300 Engine - Turbo / exhaust manifold

1

Turbo & exhaust manifold assy



2

Banjo bolt - oil feed



3

Joint washer



4

Pipe - turbo oil feed



5

Pipe - oil drain



6

Gasket - oil drain pipe



7

Adaptor - oil drain



8

Screw



9

Blanking plate



10

Blanking plate gasket



11

Screw
