Page ref: 16
TDI

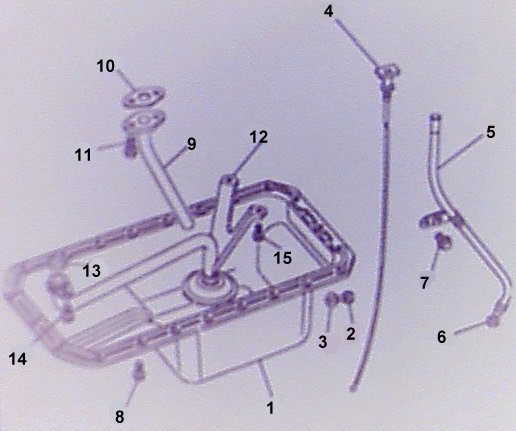

300 engine - Sump
|
1 |
Sump |
|
|
2 |
Plug |
|
|
3 |
Washer |
|
|
4 |
Dipstick |
|
|
5 |
Dipstick tube |
|
|
6 |
Sealing ring |
|
|
7 |
Screw |
|
|
8 |
Screw |
|
|
9 |
Pipe - oil drain |
|
|
10 |
Gasket |
|
|
11 |
Screw |
|
|
12 |
Oil pick-up assy |
|
|
13 |
O ring |
|
|
14 |
Screw |
|
|
15 |
screw |
|
