Page ref: 36

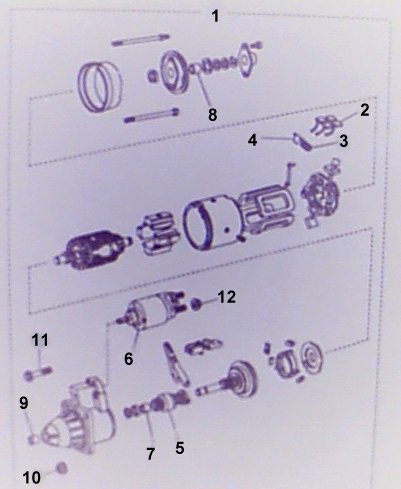

TDI 300 engine - Starter

1

Starter



1

Starter

Exchange unit

2

Brush set



3

Compression spring



4

Guide bush



5

Drive assy



6

Solenoid



7

Bush



8

Bush



9

Bush



10

Nut



11

Screw



12

Nut
