Page ref: 26

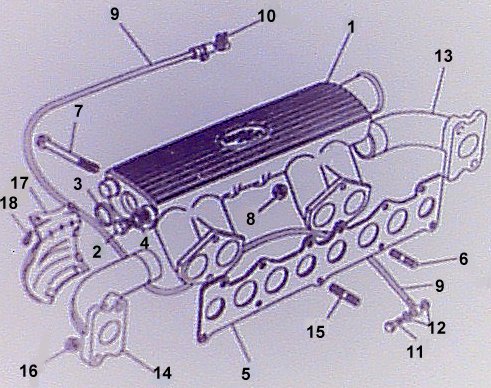

TDI 300 engine - Manifolds

1

Manifold inlet



2

Drain plug



3

Cup plug



4

Washer joint



5

Gasket manifold/head



6

Stud



7

Bolt



8

Nut



9

Boost pipe assy



10

Hose clamp



11

Banjo bolt boost capsule



12

Washer joint



13

Manifold - exhaust LH



14

Manifold - exhaust RH



15

Stud



16

Nut



17

Heatshield - Exhaust manifold



18

Screw
