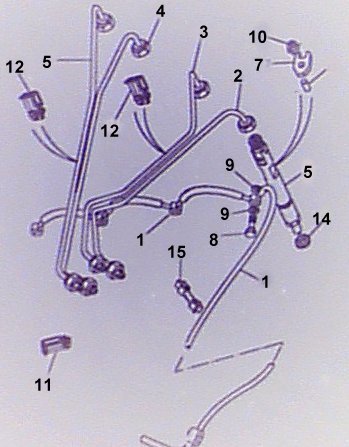

Page ref: 29
TDI 300 engine - Fuel injector / pipes
|
1 |
Spill return assy |
|
|
2 |
Pipe - Injector 1 |
|
|
3 |
Pipe - injector 2 |
|
|
4 |
Pipe - injector 3 |
|
|
5 |
Pipe - injector 4 |
|
|
6 |
Injector |
|
|
7 |
Clamp - injector |
|
|
8 |
Banjo bolt |
|
|
9 |
Joint washer |
|
|
10 |
Nut |
|
|
11 |
Clip - 4 pipes |
|
|
12 |
Clip - 2 pipes |
|
|
13 |
Pin injector clamp |
|
|
14 |
Sealing washer |
|
|
15 |
Cable clip |
|
