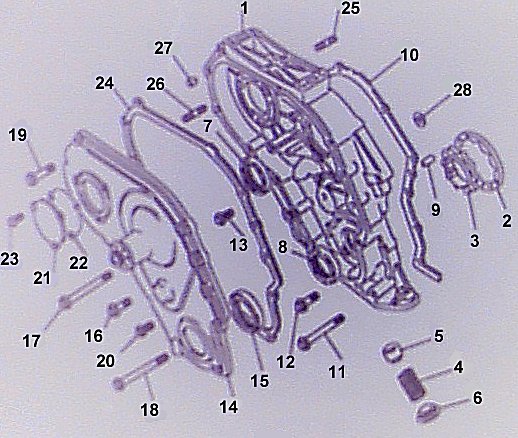

TDI 300 engine - front cover


1

Cover - engine



2

Rotor - Outer



3

Rotor - inner



4

Spring - relief valve



5

Plunger - relief valve



6

Plug - relief plunger



7

Oil seal - camshaft



8

Oil seal - crankshaft



9

Dowl



10

Gasket - front cover



11

Bolt



12

Bolt



13

Screw



14

Cover - front



15

Oil seal - crankshaft



16

Bolt



17

Bolt



18

Bolt



19

Bolt



20

Screw



21

Cover plate



22

Gasket - cover plate



23

Screw



24

Gasket - cover plate



25

Stud



26

Stud



27

Dowl - front cover



28

Joint washer
