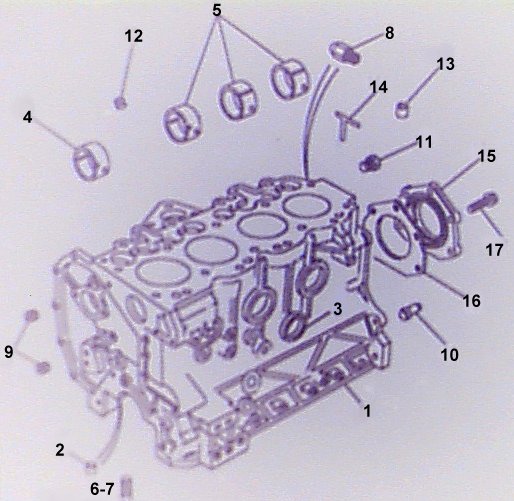

TDI engine - Cylinder block
|
1 |
Cylinder block |
|
|
2 |
Dowl - bearing caps |
|
|
3 |
Cup plug |
|
|
4 |
Bearing - cam |
|
|
5 |
Bearing - cam |
|
|
6 |
Bolt - bearing cap |
|
|
7 |
Bolt - bearing cap |
|
|
8 |
Oil jet - camshaft |
|
|
9 |
Plug - oil gallery |
|
|
10 |
Dowl - flywheel housing |
|
|
11 |
Plug - gallery pipe |
|
|
12 |
Plug - camshaft oil feed |
|
|
13 |
Ring dowl - head/block |
|
|
14 |
Packing strip |
|
|
15 |
Oil seal - rear |
|
|
16 |
Gasket - rear oil seal |
|
|
17 |
Screw |
|
