Page ref: 41

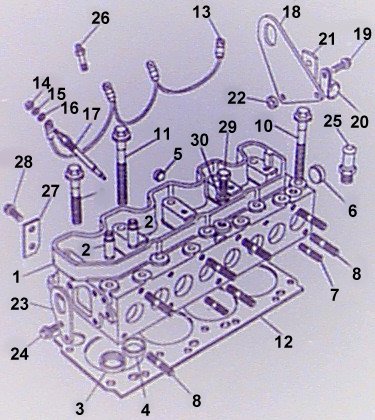

TDI 300 engine - Cylinder head

1

Cylinder head assy



2

Guide - valve



3

Inlet valve seat insert



4

Exhaust valve seat insert



5

Plug cup



6

Plug cup



7

Stud



8

Stud



9

Bolt - head 12x100



10

Bolt - head 12x140



11

Bolt - head 10x117



12

Gasket

1.3, 1.4 or 1.5 mm

13

Cable assy - glow plugs



14

Nut



15

Washer



16

Washer



17

Glow plug



18

Bracket



19

Screw



20

P clip



21

Harness bracket



22

Spacer



23

Bracket



24

Screw



25

Adaptor



26

Stud - injector clamp



27

Retaining bracket



28

Screw



29

Plug



30

Joint washer
