Page ref: 24
TDI

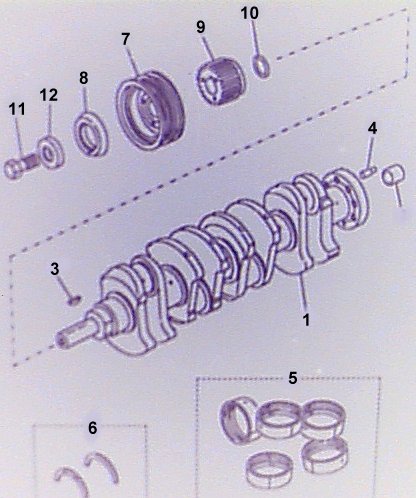

300 engine - Crankshaft / pulley
|
1 |
Crankshaft |
|
|
2 |
Bush |
|
|
3 |
Key |
|
|
4 |
Dowl |
|
|
5 |
Bearing kit |
|
|
6 |
Thrust washer kit |
|
|
7 |
Damper/pulley |
|
|
8 |
Flinger |
|
|
9 |
Pulley - crank timing |
|
|
10 |
O ring |
|
|
11 |
Bolt - crankshaft |
|
|
12 |
Thrust washer |
Not fitted to Frazier engine |
|
13 |
Pump drive flange |
Fitted in lieu of item 12 (not shown) |
