Page ref: 23

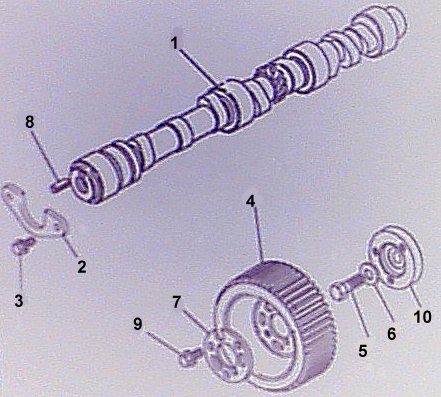

TDI 300 engine - Camshaft /drive pulley
|
1 |
Camshaft |
|
|
2 |
Plate thrust camshaft |
|
|
3 |
Screw |
|
|
4 |
Pulley timing belt |
|
|
5 |
Bolt |
|
|
6 |
Washer |
|
|
7 |
Plate retaining |
|
|
8 |
Dowl camshaft |
|
|
9 |
Screw |
|
|
10 |
Hub camshaft pulley |
|
