Page ref: 94

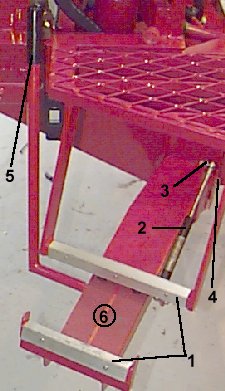

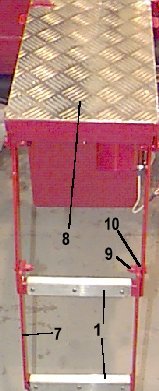

Phantom / Stealth - Steps
|
1 |
Aluminium step angle |
Specify length |
|
2 |
Gas ram |
|
|
3 |
Ball - Gas ram |
|
|
4 |
Pivot bolt 9/16" |
|
|
5 |
Nylon washer |
|
|
6 |
Lower step assy - front |
|
|
7 |
Lower step assy - rear |
a) TC, TCI |
|
8 |
Aluminium tread plate 2mm |
a) TC, TCI |
|
9 |
Pivot bolt/nut |
|
|
10 |
Nylon washer |
|
