Page ref: 127

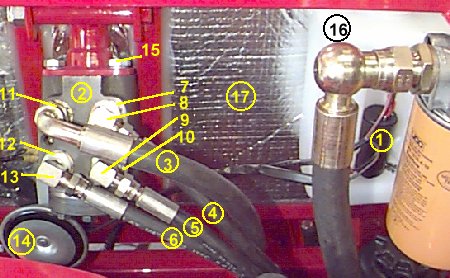

Steering unit - Phantom/Stealth
Windscreen washer bottle
Horn
Bulkhead Trim

1

Washer pump



2

Steering unit

80cc

3

Hose assy - Return

a) TDI
b) TC/TCI

4

Hose assy - feed

a) TDI
b) TC/TCI

5

Hose assy - ram



6

Hose assy - ram



7

Adaptor

a) 1/4 x 1/2"
b) sealing washer

8

Elbow



9

Elbow



10

Adaptor

a) 1/4 x 1/2"
b) sealing washer

11

Adaptor

a) 1/2" x 1/2"
b) sealing washer

12

Adaptor

a) 1/4 x 1/2"
b) sealing washer

13

Elbow



14

Horn 12V



15

Stud



16

Windscreen washer bottle

a) assy
b) bottle only

17

Trim - Foil faced barrier
