Page ref: 69

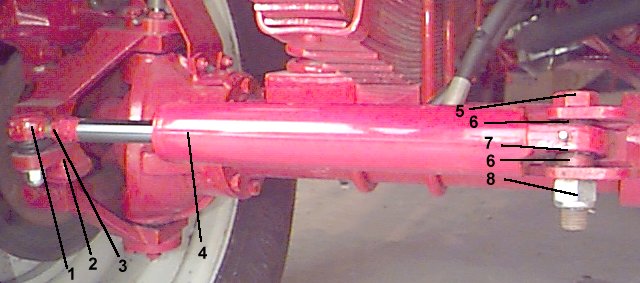

Hydrostatic steering - Steering rams
All variants

1

Ball joint

a) HD FPW axle, RH thread
b) LandRover axle, RH thread

2

Ram steering arm (rear)

a) HD FPW axle
b) Exchange unit

3

Locknut



4

Steering ram

a) Front TDI (50mm)
b) Front - all other models
c) Rear - All models

d) Front - with built-in 4WS sensor
e) Rear - with built-in 4WS sensor

All rams available as exchange units

5

Ram securing bolt



6

Spacer



7

Ram spherical bearing



8

Nylock nut



9

Ram seal kit
