Page ref: 90

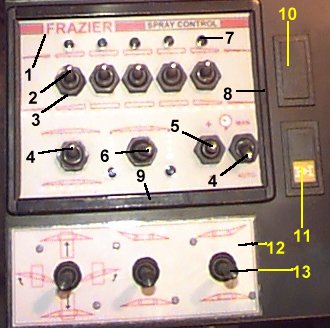

Sprayer control panel - 09/98>
Joystick controls
Diff warning lamp - TDI

1

Decal - spray control panel

1998>

2

Switch - boom section

SPST

3

Rubber switch seal



4

Switch - On/Off, selector

DPDT

5

Switch - Pressure

DPDTSCCO

6

Switch - Boutmarker

DPDTCO

7

Warning lamp



8

End plate

a) End plate
b) Plate securing screw

9

Control box

a) Complete assy
b) Extrusion (/mm)

10

Blank plate

(various switches available)

11

Diff lock w/l



12

Decal

Height/tilt/variable geometry

13

Joystick

a) assy
b) micro-switch
