Page ref: 74

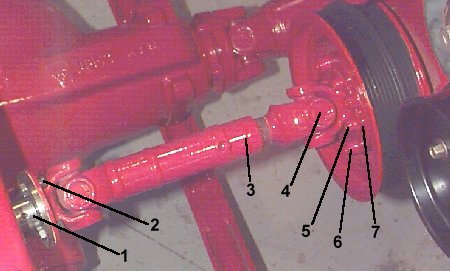

Hydraulic pump drive shaft

1

Pump drive flange

a) parallel bore
b) Taper bore (specials only)

2

Capscrew & nut



3

Drive shaft

a) 1995 >
b) < 1995

4

Universal joint



5

Capscrew

6 mm

6

Capscrew

8mm

7

Drive hub/spacer

a) TDI
b) TDI - special auxiliary belt drive
c) TCI, NA(with air con)
d) NA less air con
e) TC with air con
f) TC less air con
