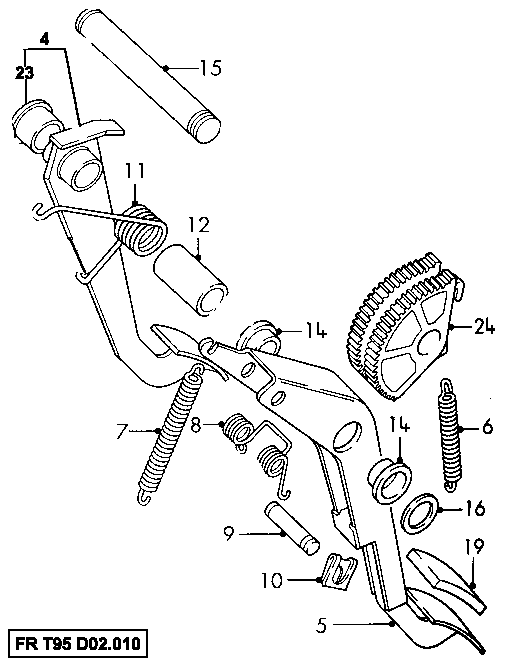

Foot pedals - Brake / clutch

4

Brake pedal

a) TDI auto
b) 2D >1989 - 1600cc engine
c) All other variants

5

Clutch pedal

a) 2D > 1989 - 1600cc engine
b) All other variants (except TDI auto)

6

Quadrant/cable tension spring

a) 2D > 1989 - 1600cc engine
b) All other variants (except TDI auto)

7

Clutch pedal return spring

a) 2D > 1989 - 1600cc engine
b) All other variants (except TDI auto)

8

Pawl return spring



9

Pawl pin



10

Pawl pin clip



11

Brake return spring

1989 >

12

Pedal spacer

Various

14

Clutch pedal bush

a) 2D > 1989 - 1600cc engine
b) All other variants (except TDI auto)

15

Pedal shaft



16

Washer



19

Pedal rubber - clutch/brake

a) 2D > 1989 - 1600cc engine
b) All other variants (except TDI auto)
c) TDI auto - brake pedal

23

Brake pedal bush



24

Quadrant

> 1989 - 1600cc engines
1989 > 1800cc engines

24a

Quadrant kit

Quadrant/pawl - >1989
Quadrant/pawl - 1989 >
