TDI Auto - Pedals, brake linkage, steering column

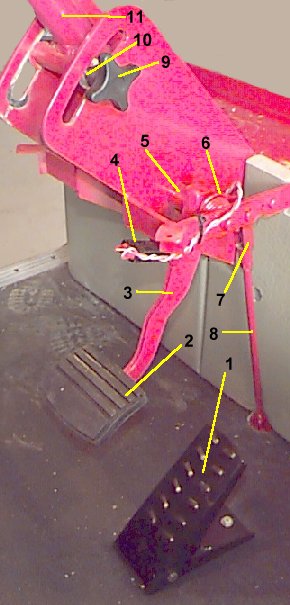

1

Throttle pedal



2

Pedal rubber



3

Brake pedal



4

Brake light switch



5

Spacer



6

Spring



7

3/8" clevis



8

Link rod



9

Clamping knob



10

Clamp bolt

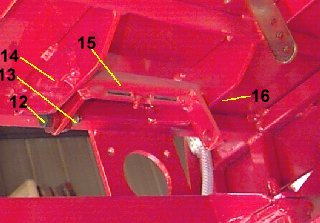

11

Steering column



12

Bolt



13

Nylok



14

Pivot bolt 9/16"



15

Brake pivot lever



16

Nylok 9/16"
