Parts page ref: 233

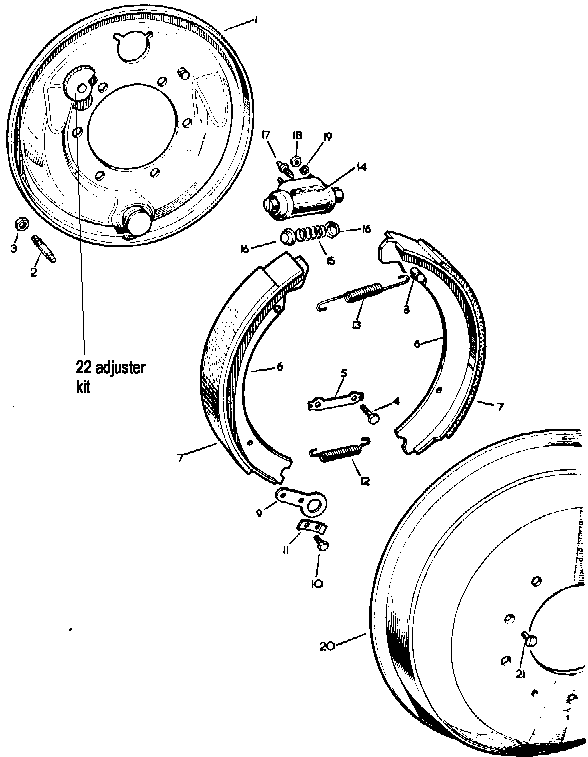

LandRover drum brake - S3 & LR90
All Agribuggy models with drum brakes

Notes:
1/ All brake shoes are common

2/ Slave cylinder 14 may be one of three types:
 a) 7/8" bore with metric pipe thread (late models) 1993>
 b) 1" bore with unf threads
 C) 1.25" bore with unf threads (early models & all front axles)

Please check & specify which one is required
