Page ref: 133

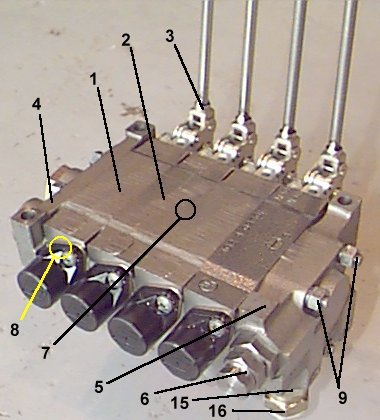

Hydraulics - Spool valves (All except Stealth)

1

Single acting spool slice



2

Double acting spool slice



3

Handle kit



4

End cover



5

Inlet cover

a) assy
b) cover only (less relief valve

6

Relief valve assy



7

Seal kit - slice



8

Seal kit - spool



9

Bolt kit

a) 1 bank
b) 2 bank
c) 3 bank
d) 4 bank (pictured)
e) 5 bank
f) 6 bank

10

Double acting electro spool assy



11

Solenoid assy



12

Din plug



13

Adaptor

a) 1/2 x 3/8"
b) 1/2 x 1/4"

14

Sealing washer

1/2"

15

Sealing washer

3/4"

16

Adaptor

a) 3/4 x 3/4" m/m
b) 3/4 x 3/4" m/f (pictured)
c) 3/4 x 1/2" mm
