Page ref: 81

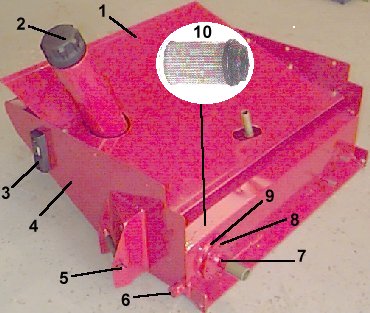

Hydraulic tank - All turbo engines

1

Heat shield

a) TDI
b) Ph/St TCI, TC
c) 4D, 475, 5D

2

Filler/breather assy



3

Level / temp gauge



4

Hydraulic tank assy

a) TDI
b) Ph/St TCI, TC
c) 4D, 475, 5D
NB also specify whether 2WS or 4WS

5

Step pivot bolt



6

Drain bung

a) Bung
b) Seal

7

Suction pipe assy

a) std 32mm OD
b) Some HP systems 40mm OD

8

Cap screw



9

O ring

a) std - To suit 32mm suction pipe
b) To suit 40mm suction pipe

10

Suction filter

a) std 64mm OD
b) Some HP systems 86mm OD
