Hydraulic quick release couplings

Page ref: 97

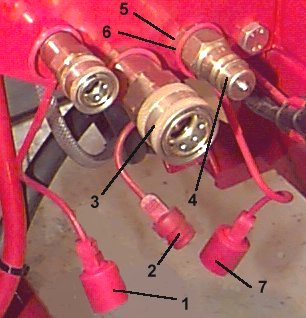

Hydraulic quick-release couplings

1

Cover for 1/4" QR

2

Plug

a) 3/8"
b) 1/2"

3

Female QR coupling

a) 1/4"
b) 3/8"
c) 1/2"

4

Male QR coupling

a) 1/4"
b) 3/8"
c) 1/2"

5

Bulkhead fitting male/male c/w locknut

a) 1/4"
b) 3/8"
c) 1/2"

6

Sealing washer

a) 1/4"
b) 3/8"
c) 1/2"

7

Cover for male coupling

a) 3/8"
b) 1/2"

1	Cover for 1/4" QR
2	Plug	a) 3/8" b) 1/2"
3	Female QR coupling	a) 1/4" b) 3/8" c) 1/2"
4	Male QR coupling	a) 1/4" b) 3/8" c) 1/2"
5	Bulkhead fitting male/male c/w locknut	a) 1/4" b) 3/8" c) 1/2"
6	Sealing washer	a) 1/4" b) 3/8" c) 1/2"
7	Cover for male coupling	a) 3/8" b) 1/2"
