Page ref: 88

Hydraulic pump - All models
Transmission temp sender (TDI auto)

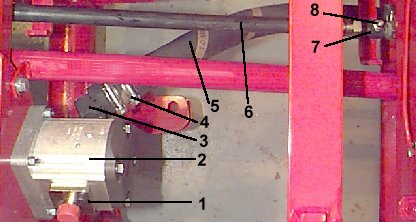

1

1/2" Pump adaptor

a) assy
b) cap screw
c) O ring

2

Hydraulic pump

a) Ag, Ph TC/TCI
b) Ph TDI auto
c) St TCI.TC (tandem pump)
d) St TDI auto (tandem pump)
e) HP systems
f) 2D >1989
NB. Std pumps all have parallel shafts, some specials and HP systems may have taper shaft

3

Suction pipe adaptor

a) Std
b) tandem pumps - various available

4

Hose clip

a) Std 32mm ID hose
b) 40mm ID hose

5

Suction hose

a) Std 32mm ID
b) 40mm ID

6

Transmission oil hose

Gearbox/Tee

7

Tee piece - temp sender



8

Temperature sender

Transmission oil
