Page ref: 86

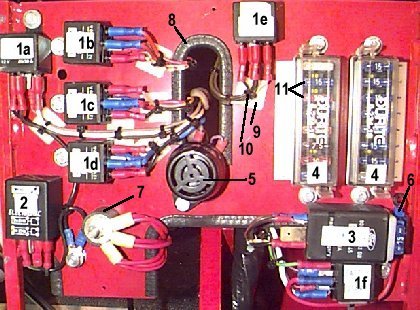

Phantom TDI - Fuse panel

1

Change over relay

a) Air conditioning condenser
b) Glow plug warning lamp
c) Air conditioning
d) Intercooler fan
e) Safety speed cut-out
f) Start

2

Flasher unit



3

Glow plug relay



4

Fusebox - 8 way



5

Warning buzzer



6

Fuse holder

(inline spade type)

7

Insulating bobbin



8

Safe edge

9

Self adhesive cable base



10

Cable tie 100mm



11

Fuse - spade type

a) 25A
b) 15A
c) 10A
d) 7.5A
e) 5A
f) 2A
