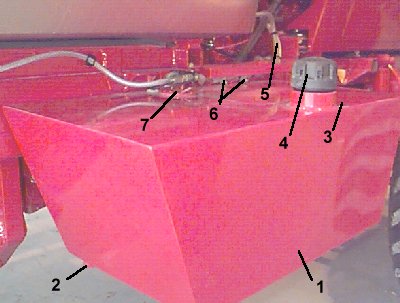

Fuel tank / fittings

1

Fuel tank

a) 85l - Phantom TCI/TDI , Stealth TCI/TDI
b) 68l - 4D/475/5D
c) 50l - 2D/3D

2

Drain bung



2a

Drain bung seal



3

"Diesel" label



4

Filler/breather cap

a) Black
b) Chrome (early 2D/3D)
c) Lockable (UCC)

5

Braided fuel hose

8mm

6

Hose clip



7

Fuel sender

a) All models Oct 95 onwards, 6 stud fastening
b) Screw in type
c) All earlier units replaced by a)
