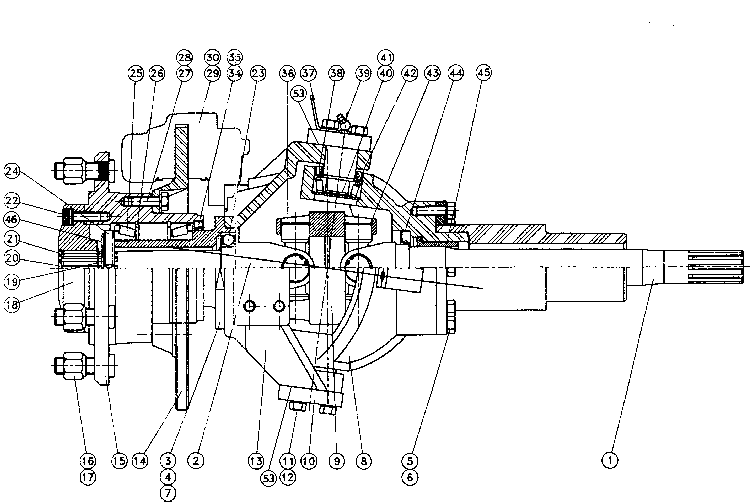

No	Description	Qty	Frazier part no	Notes
1	Halfshaft:   Front steer n/s, std axle   Front steer o/s, std axle   Front steer n/s, wide axle   Front steer o/s, wide axle   Rear steer n/s, std axle   Rear steer o/s, std axle   Rear steer n/s, wide axle   Rear steer o/s, wide axle	1 1 1 1 1 1 1 1	FP-HS-FSI FP-HS-FS FP-HS-FLI-W FP-HS-FSI-W FP-HS-RLI FP-HS-RSI FP-HS-RLI-W-ST FP-HS-RSI-W-ST	Overall length:   695 mm   370 mm   810 mm   475 mm   620 mm   445 mm   730 mm   555 mm
2	Stub shaft - std Stub shaft - TDI	2	FP-HS-FO	265 mm 10 spline   265 mm 19 spline
3	Axle stub	2	FP-HU-SA
4	7/16 X 1" UNF set screw	12	NB-B-F-7/16X1
5	M10 X 25 mm Set screw	16	NB-B-M-10X25P
6	M10 Spring washer	16	NB-W-S-10P
7	7/16 Spring washer	12	NB-W-S-SP
8	Axle case assembly:   Front steer, std axle   Front steer, wide axle   Rear steer, std axle   Rear steer, wide axle	1 1 1 1		Non stock item
9	UJ carrier	2	FP-HS-UJC
10	King pin top and bottom	4	FP-SH-KP FP-SH-KP-4WS	4WS Front & rear n/s top pin is modified to suit type of sensor.
11	M10 X 30 bolt	16	NB-B-M10X30P
12	M10 Spring washer	16	NB-W-S-10P
13	Swivel housing	2		Non stock item
14	Brake disc - std Brake disc - HC Brake disc - TDI	2	FP-BR-BD	Quote overall diameter
15	Wheel hub	2		Non stock item
16	Wheel stud:   Course thread (early)   Fine thread (late)	12 12	FP-WS FP-WS-FT
17	Wheel nut:   Course thread (early)   Fine thread (late)	12 12	FP-WN-CT  FP-WN-FT
18	Drive member - std Drive member - TDI	2	FP-HU-DF	10 spline  19 spline
19	Stub shaft ext circlip 35mm dia	2	FP-HS-C
20	Drive member gasket	2	FP-GA-DM
21	Blanking plug	2	FP-HU-DM-C
22	M10 X 30 allen cap screw	20	NB-C-M10X30
23	Stub shaft support bearing	2	FP-BRG-SS
24	Hub nut	2	FP-HU-N
25	Wheel bearing	4	FP-BRG-H
26	Wheel bearing circlip	4		Non stock item
27	M10 X 35 bolt	12	NB-B-M10X35SC
28	M10 spring washer	12	NB-W-S-10P
29	Brake caliper LH	1	FP-BR-CA-LH
30	Brake caliper RH	1	FP-BR-CA-RH
34	Hub seal collar (abuttment ring)	2	FP-HU-AR
35	Hub oil seal	2	FP-HS-OS
36	Half shaft UJ	4	FP-HS-UJ
37	Brake pipe bracket:   2WS   4WS	2 2
38	King pin seal	4	FP-SE-FP
39	KIng pin grease nipple:   2WS   4WS n/s top 1/4 UNF   4WS All others	4 1 3
40	King pin blanking cover	4	FP-SH-KPBD
41	King pin bearing spacer shim	4	FP-SH-KPSS
42	King pin bearing	4	FP-BRG-KP
43	Half shaft UJ circlip	16		In UJ kit
44	Half shaft oil seal	2	FP-SE-H/S
45	Half shaft "top hat bush"	2	FP-BRG-FSB
46	Thrust washer	2	FP-HS-TW
53	King pin shims:   White   Blue	10 10	FP-SH-FP-SW FP-SH-KP-SB
54	Axle breather	1	FP-AX-B	Not shown
