Heavy duty drive/steering & rigid axle
 Drum brake assembley

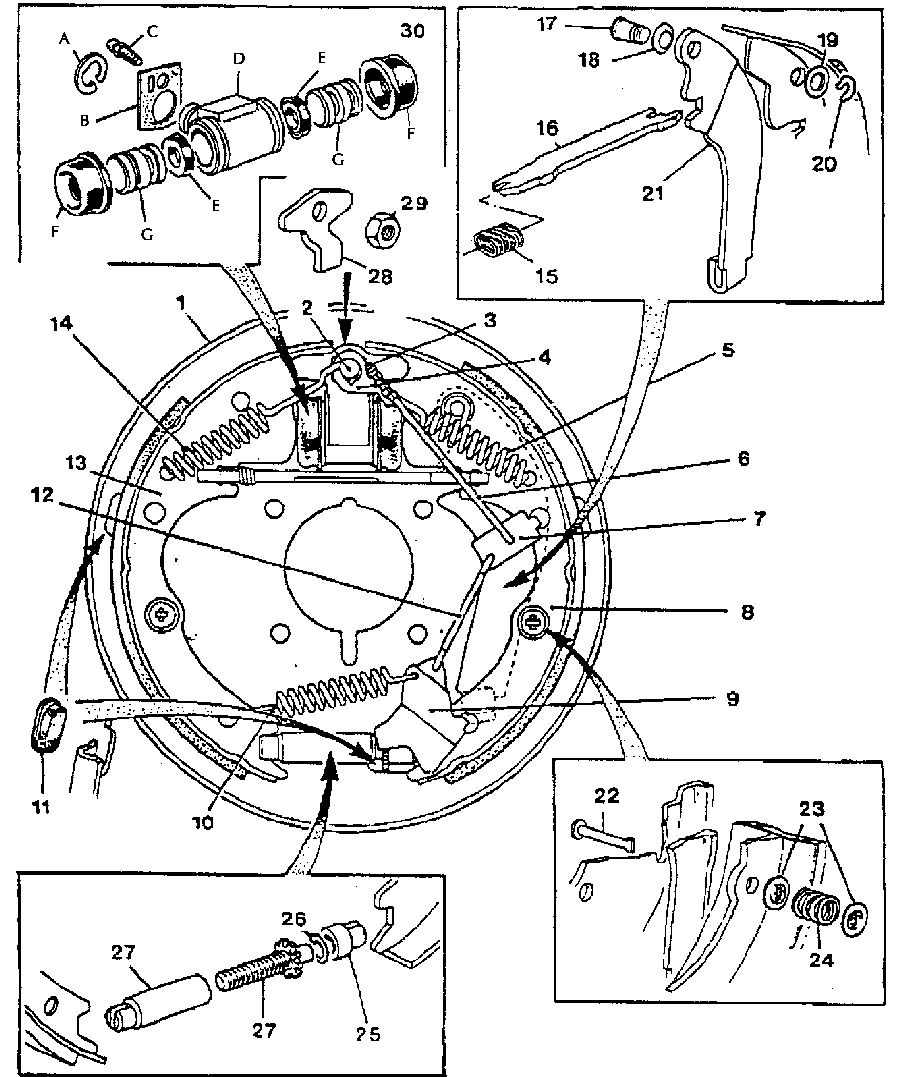

Drum brake - exploded drawing

No

Description

Qty

Frazier part no

Notes

1

Backplate

2





2

Pivot post

2





3

Top adjuster nut

2





4

Top adjuster plate

2





5

Secondry pull-off spring

2





6

Top adjuster rod

2





7

Pivot plate

2





8

Secondry shoe
  Front 12" diameter
  Rear 10" diameter


2
2


FP-BR-BS-F-12
FP-BR-BS-R-10

The primary and secondry brake shoes are supplied in together in sets

9

Bottom adjuster plate

2





10

Tension spring

2





11

Rubber plug

4





12

Bottom adjuster rod

2





13

Primary shoe

2

see item 8 above

See item 8 above

14

Primary pull-off spring

2





15

Anti-rattle spring

2





16

Cross lever

2





17

Handbrake lever pivot pin

2





18

Spring washer

2





19

Washer

2





20

Circlip

2





21

Handbrake lever

2





22

Steady pin

4





23

Steady washers

8





24

Steady spring

4





25

End cap

2





26

Washer

2





27

Bottom adjuster screw & nut

2&2





28

Steady plate

2





29

Locknut

2





30

Wheel cylinder (complete unit):
  Front
  Rear


4
2

FP-BR-FWC
FP-BR-RWC



 A

Circlip (per unit)

1





 B

Gasket (per unit)

1





 C

Bleed screw (per unit)

1





 D

Wheel cylinder body (per unit)

1





 E

Piston seal (per unit)

2





 F

Rubber boot (per unit)

2





 G

Piston (per unit)

2
