Page ref: 92

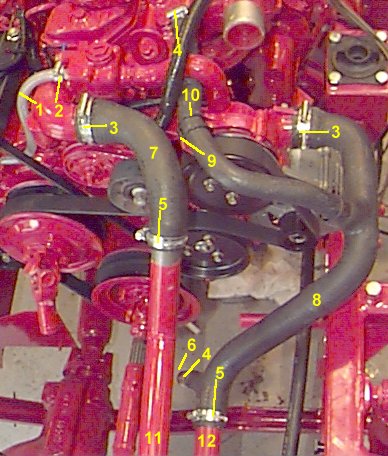

TDI - Engine cooling system - engine hoses
|
1 |
Braided hose 8mm |
|
|
2 |
Hose clip |
|
|
3 |
Hose clip |
|
|
4 |
Hose clip |
|
|
5 |
Hose clip |
|
|
6 |
Plug |
|
|
7 |
Top Hose - engine |
|
|
8 |
Bottom hose - engine |
|
|
9 |
Cradle |
|
|
10 |
Cradle clip |
|
|
11 |
Cooling tube - top |
|
|
12 |
Cooling tube - bottom |
|
