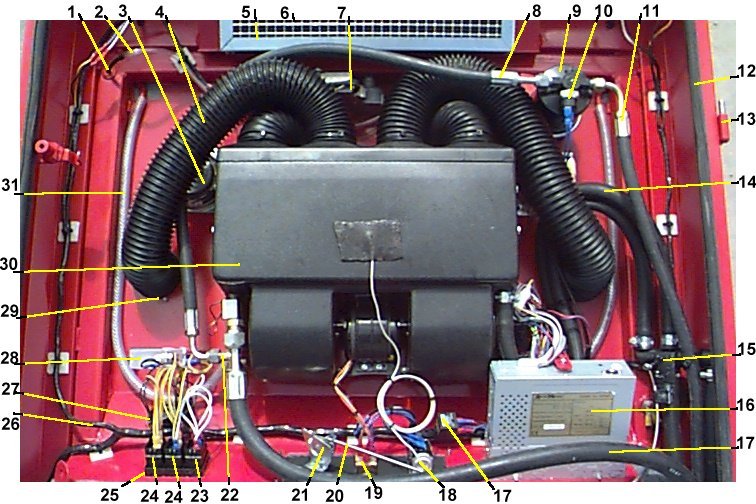

Ventilation/filtration system - Phantom

1

Nylon washer hose

5mmOD

2

Clear PVC hose

5mm ID

3

Radio speaker



4

Air ducting



5

Carbon filter



6

Filter retaining strap



7

Windscreen wiper motor



8

Hose assy Drier/valve



9

Receiver/drier



10

Pressure switch



11

Hose assy Drier/condenser



12

Rubber seal



13

Bullet hinge



14

Heater hose

16mm

15

Heater control valve

a) 4 way
b) 2 way plastic
c) 2 way steel

16

Radio FM



17

Relay (a/c)



18

Air con thermostat switch

a) Assy with knob
b) Switch only
c) knob only

19

3 speed fan switch

a) Assy with knob
b) Switch only
c) Knob only

20

Heater control cable



21

Heater control

a) Assy with knob
b) Swich only
c) Knob

22

Expansion valve



23

Switch - beacon

a) Switch assy
b) Switch only
c) Decal - beacon
d) Warning lamp

24

Switch - Work lamp

a) Switch assy
b) Switch only
c) Decal - worklamp
d) Warning lamp

25

Switch frame - 3 bank



26

Wiring loom assy - roof



27

Recirculation vent 50mm



28

Interior lamp



29

Ventilation louvre 63mm



30

Evaporator assy



31

Drain hose

8mm braided
