Page ref: 87

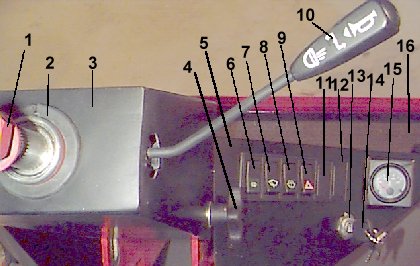

Phantom - Dashboard

1

Steering wheel nut



2

Grommet



3

Column cover



4

Adjusting nut



5

Console assy



6

Headlamp switch

a) assy
b) Switch only
c) Decal - headlamps
d) warning lamp assy

7

Windscreen wiper switch

a) assy
b) Switch only
c) Decal - wipers
d) warning lamp assy

8

Windscreen wash switch

a) assy
b) Switch only
c) Decal - wash
d) warning lamp assy

9

Hazzard warning

a) assy
b) Switch only
c) Decal - hazzard
d) warning lamp assy

10

Column switch

a) assy
b) switch only
c) Clamp bracket
d) Clamp screws

11

Blank cover



12

Switch frame

For 6 switches

13

Ignition switch



14

Ignition key



15

Temperature guage

a) Transmission - TDI auto only
b) Sender unit

16

Rubber mat
